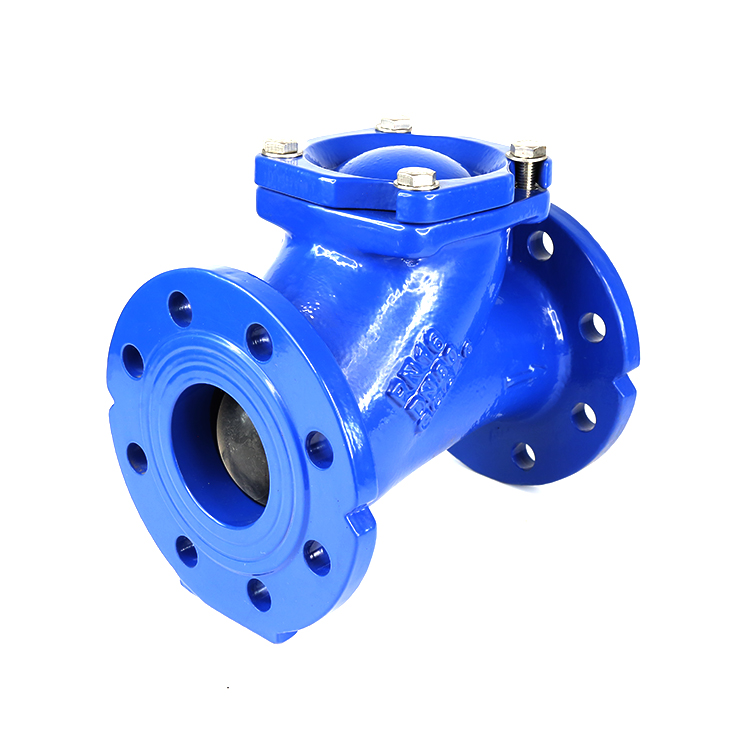

Iron Ball Check Valve

An iron ball check valve, also known as a ball check valve or swing check valve, is a type of check valve that is constructed with an iron body. It is designed to allow fluid flow in one direction while preventing backflow in the opposite direction. Here are some key features and information about iron ball check valves:

1. Construction: Iron ball check valves are typically constructed with a cast iron body, which provides strength, durability, and resistance to corrosion. The valve may also have a stainless steel or other compatible material ball inside the body.

2. Check Valve Design: The valve design consists of a ball, which acts as the check mechanism, and a seat or sealing surface. The ball is free to move within the valve body. When there is forward flow, the pressure pushes the ball away from the seat, allowing the fluid to pass through the valve. When there is backflow or reverse flow, the ball is forced against the seat, creating a seal that prevents the fluid from flowing backward.

3. Flow Direction: Iron ball check valves are typically designed for flow in one direction, and they provide reliable backflow prevention. It's essential to install the valve in the correct orientation to ensure proper functioning.

4. Full Flow Opening: When the fluid is flowing in the forward direction, the ball check valve offers a full flow opening, resulting in minimal pressure drop across the valve. This design helps maintain efficient flow rates.

5. Low Pressure Applications: Iron ball check valves are commonly used in low-pressure applications, such as residential plumbing systems, wastewater treatment, irrigation systems, and some industrial processes. They are generally not suitable for high-pressure systems.

6. Maintenance and Repair: Iron ball check valves are relatively simple in design and require minimal maintenance. However, if the valve fails or the ball becomes damaged, it may need to be replaced.

7. Installation Considerations: When installing an iron ball check valve, it's important to consider the orientation, proper sealing, and appropriate sizing for the intended flow rates and pipe dimensions. Following the manufacturer's guidelines and consulting with professionals can help ensure proper installation.

8. Accessories and Options: Iron ball check valves can be equipped with additional features like flanged ends, threaded ends, or grooved ends to facilitate easy installation and connection to the piping system. Some valves may also have a lever or handle for manual operation.

When selecting an iron ball check valve, consider factors such as the fluid type, pressure rating, temperature range, and compatibility with the piping system. It's important to choose a valve that meets the specific requirements of your application and complies with relevant industry standards. Consulting with a valve supplier or an engineer experienced in check valve selection can help you make the right choice.
