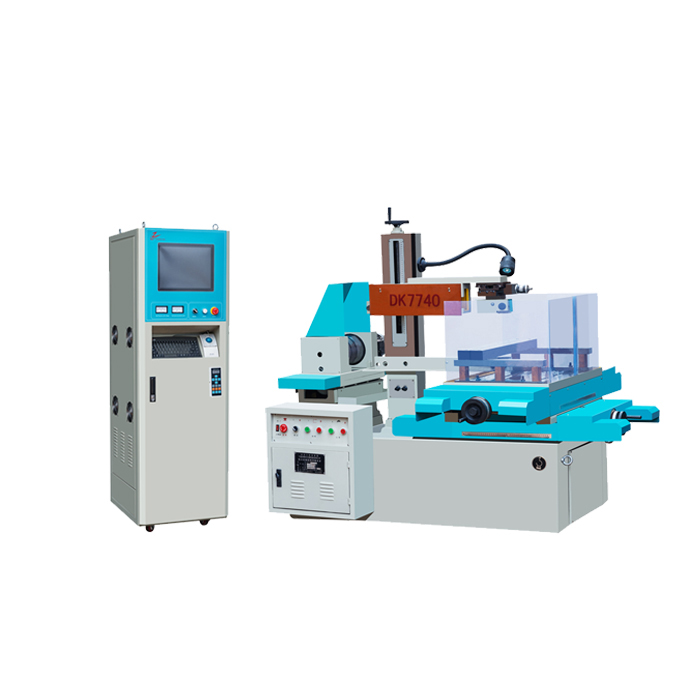

EDM Wire Cut Machine

An EDM (Electrical Discharge Machining) wire cut machine, also known as a wire EDM or wire-cut EDM machine, is a specialized tool used in the manufacturing industry for precision cutting of various materials, particularly metals. It utilizes electrical discharge machining principles to accurately cut complex shapes and contours.

Here are some key features and components typically found in an EDM wire cut machine:

1. Worktable: The worktable is a flat surface that holds the workpiece to be cut. It can move in multiple directions to accommodate different cutting requirements and enable precise positioning.

2. Wire Spool and Feeding System: The machine is equipped with a spool of thin metallic wire, usually made of brass or tungsten. The wire is continuously fed from the spool to perform the cutting operation. The feeding system ensures a steady and controlled movement of the wire during the cutting process.

3. Power Supply: The power supply generates the electrical energy required for the EDM process. It provides a high voltage discharge between the wire electrode and the workpiece, causing controlled erosion and material removal.

4. Wire Tensioning System: The wire tensioning system maintains the appropriate tension in the wire to ensure accurate cutting. Proper tensioning is essential for maintaining stability and minimizing wire breakage during the process.

5. Control Panel: The control panel allows the operator to input cutting parameters such as cutting speed, wire tension, and other settings. It also provides monitoring and feedback on the machine's performance, including wire breakage detection and error notifications.

6. CNC (Computer Numerical Control) System: Many modern EDM wire cut machines are equipped with a CNC system that controls the machine's movements and cutting paths. The CNC system utilizes pre-programmed instructions to guide the wire cut machine and execute complex cutting operations with high precision.

The operation of an EDM wire cut machine involves the following steps:

1. The workpiece is securely mounted on the worktable, ensuring proper alignment.

2. The wire electrode is threaded through the workpiece, and the cutting area is immersed in a dielectric fluid to facilitate the electrical discharge.

3. The CNC system controls the movement of the wire and guides it along the desired cutting path. The high voltage electrical discharge occurs between the wire and the workpiece, resulting in controlled material removal.

4. The wire electrode continuously cuts through the workpiece, following the programmed path to create the desired shape or contour.

5. The dielectric fluid flushes away the debris and cools the cutting area during the process.

EDM wire cut machines are widely used in industries such as aerospace, automotive, electronics, and tool and die manufacturing. They offer high precision, excellent surface finish, and the ability to cut intricate shapes that may be challenging to achieve using traditional machining methods.
